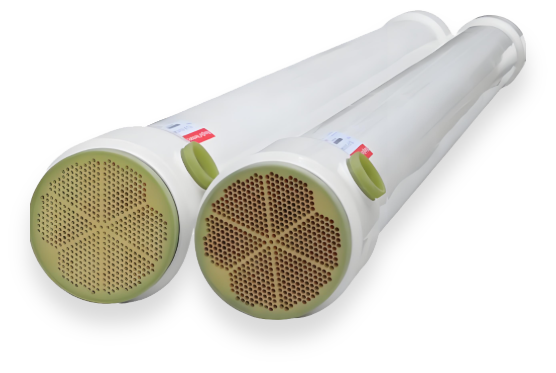

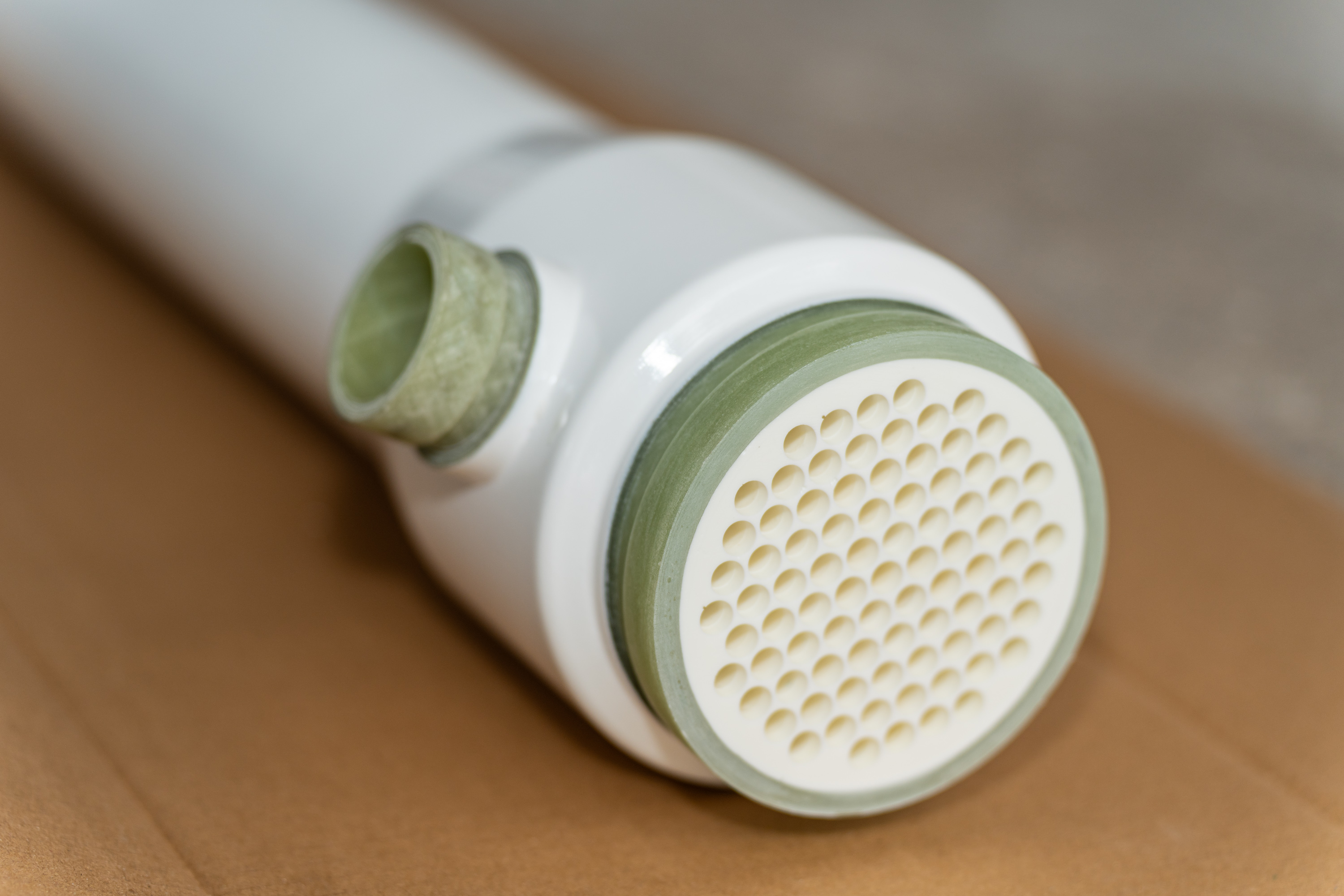

Standard Tubular Membrane-HUZHOU HOWIE MEMBRANE TECHNOLOGY CO.,LTD

Membrane Performance

Item	Unit	Performance parameters
Membrane material		PES	PVDF	PVDF
MWCO	Dalton	50000	100000	250000
Pure water plux	LMH@100kpa	≥200	≥300	≥800
Operating temperature	℃	1-85℃
Membrane Tube ID	mm	5.5, 8, 10, 12.7
Operating pressure	kpa	-50-800
pH range		2-10
Chlorine tolerance	PPM·H	250,000

Module Parameters ( Membrane ID=8mm）

Model	Membrane ID（mm)	Module OD (inch)	Module length (mm）	Membrane area （m²）
HWM-TUF30-43E	8	4	3000	6.4
HWM-TUF30-63E	8	6	3000	15.2
HWM-TUF30-83E	8	8	3000	27.2
HWM-TUF30-84E	8	8	4000	36.7
HWM-TUF30-103E	8	10	3000	40
HWM-TUF30-104E	8	10	4000	53.4

Design Parameters

Max.Operating pressure（kpa)	800
Typical operating pressure（（kpa)	300-500
Max.Operating temperature（℃）	85
pH- continuous operation	2-10
pH- CIP cleaning	2-12
Pressure drop per module（bar)	0.75-1
Recommended flow velocity（m/s)	3-5
Design flux（LMH)	50-300
Circulation pump flow rate reference	4”/6”/8”/10”module：70/150/270/400m³/h

Service Guidance

The above are the core parameters of the product, covering the key point such as performance, dimensions, materials, compatibility standards, ensuring you have a clear understanding to the product’s basic configuration of the product. Should you have any further questions to the parameters(e.g., adaptability to specific application, or unmentioned specifications), please feel free to contact our customer service team, we will provide one-on-one parameter interpretation and technical support to help you accurately determine whether the product meets your requirements.
